Learn more about SMD LED display

pkgled LEDSMDBEADS release time:2023-12-04 10:15:15 Reading volume:1

smd generally refers to SMD (Surface Mounted Device) refers to a method of installation used in the manufacturing of electronic components, such as LEDs. Unlike traditional manual soldering or welding methods, SMD uses automated equipment to install components on printed circuit boards (PCBs), making SMD more cost-effective than other types of displays.

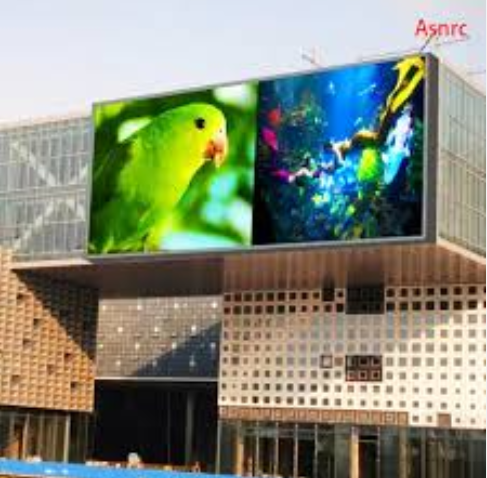

 Application of LED display screen

What is an SMD LED screen?

An SMD LED screen is a screen made up of an array of light-emitting diodes (LEDs) that can be arranged in various patterns to create images. They are known as flat panel displays because they do not have curved edges like LCD screens.


Types of SMD LED displays:


1. Direct insertion package:

This type of SMD LED display has its own power unit and is usually composed of two parts - one part contains all the electronic components, and the second part contains the driving circuit. These two components need to be connected by wires, and a heat sink is also included to prevent the device from overheating.


Advantages of direct serial packaging:

Compared to other types of SMD LED displays, it has better performance and can provide higher brightness levels at lower voltages. However, it requires additional space due to the extra wiring between the two independent units.


2. Surface-mounted diodes:

It consists of a single diode chip. Unlike the direct serial packaging with multiple chips, the surface-mounted technology only requires a single element. However, it needs an external driver to function and offers little design flexibility.

Why consider surface-mounted diodes:

They provide high resolution and low energy consumption, have a longer lifespan than other types of SMD displays, but cannot offer good color reproduction.

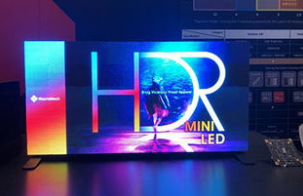

 Application of LED display screen

3. COB LED displays:

COB stands for chip-on-board, which means the entire display is built on a single board rather than being separate from it. This type of SMD LED display offers several advantages, such as allowing manufacturers to produce smaller products without sacrificing quality, reducing overall weight, and saving time and money.


Applications and uses of SMD LED screens:

SMD LED screens can be used for advertising displays, such as showing prices, promoting special events, indicating stock levels, etc. They are also widely used in industrial and household lighting systems, digital signs, vehicles, and personal electronic devices.

Application of LED display screen


Advantages of SMD LED screens:

SMD LED screens offer cost-effectiveness, high resolution, flexibility, reliability, color compatibility, optimal viewing angles, real video quality, and high brightness, making them an ideal choice for various application scenarios.


I hope this article will give you a deeper understanding of SMD led display I am your editor from TCWIN, guiding you on the road to lighting.
