smd 5050 rgb led
We supply smd 5050 rgb led We devoted ourselves to lighting many years,coveringmost of Europe and the Americas market.We are expecting become your long team partner inChina.
- product brand: TCWIN
- Encapsulation: SMD
- Specification: 5050RGB
- Product power: 0.2W-1.5W
- Working current: 20ma-150ma
- Glowing color: RGB
- Product Size: 5.0*5.0*1.1-2.6mm
- product name: smd 5050 rgb led
- Application field: (Surface-mount device (SMD)1.LED guardrail tubes;2.LED line lights;3.LED point light sources;4.LED soft and hard LED strips;5.LED modules;6.Outdoor lighting;The SMD landscape lighting series products are mainly used for landscape lighting, including guardrail tubes, line lights, point light sources, soft and hard LED strips, modules, etc.
- Product Features: high light efficiency, good mixing effect, high stability, customizable foot positions according to different requirements
- Operating Voltage: 3V
smd 5050 rgb led
category | 功率/W | 工作电流/ma | size/mm | 电压/V |
convention | 0.5W | 50ma | 5.0*5.0*1.55mm | 3V |
convention | 1.5W | 150ma | 5.0*5.0*1.1mm | 3V |
San An | 0.2W | 20ma | 5.0*5.0*1.55mm | 3V |
CREE | 0.2W | 20ma | 5.0*5.0*1.55mm | 3V |

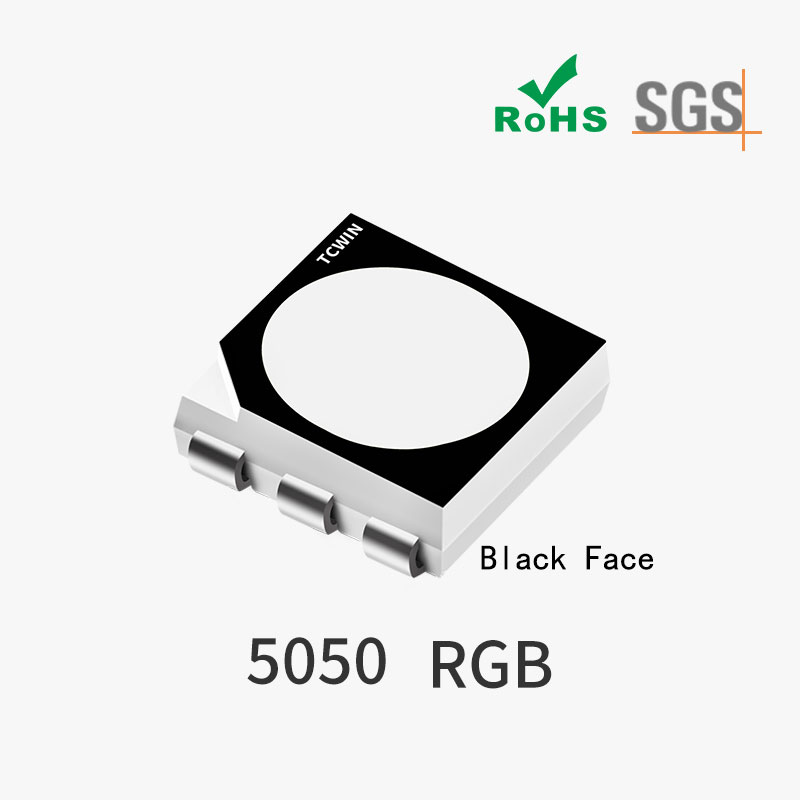

Waterproof, low cup, black surface | 0.2W | 20ma | 5.0*5.0*1.6mm | 3V |
Waterproof, high cup, black surface | 0.2W | 20ma | 5.0*5.0*2.6mm | 3V |

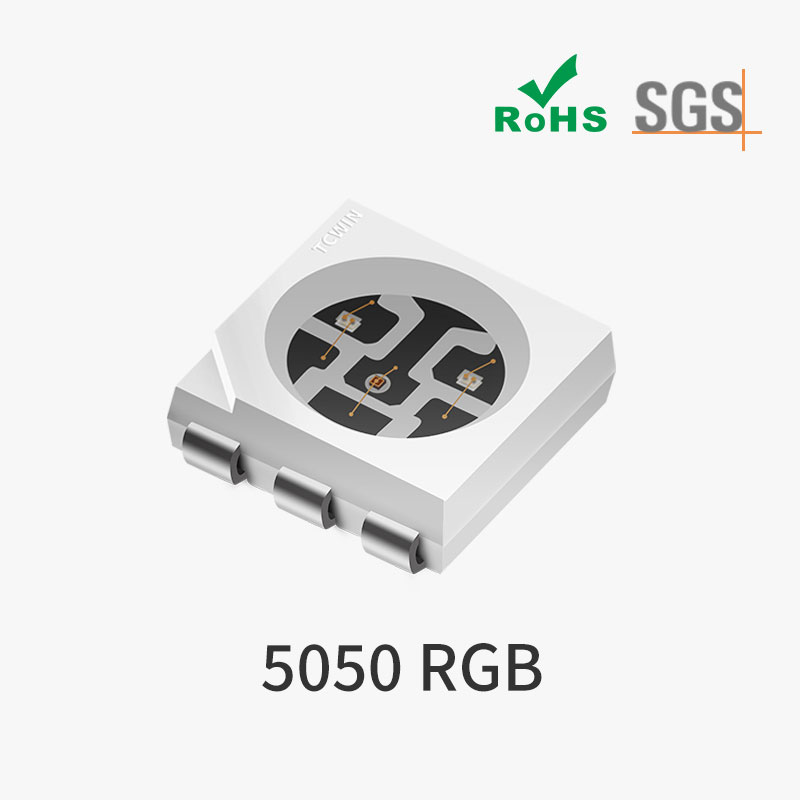

5050RGB Product Introduction
1. Product Overview
5050RGB LED SMD lamp beads, as one of the most popular RGB LED lamp beads on the market, are known for their standard size of 5.0 x 5.0 mm. This lamp bead incorporates red, green, and blue LEDs, and can achieve rich and colorful color changes through fine circuit control, greatly enriching the possibilities of lighting decoration.
2. Product Categories
5050RGB lamp beads are divided into many types according to power, brand, waterproof performance, and appearance:
Power classification:
0.5W: Low brightness, suitable for decorative lighting.
1.5W: High brightness, suitable for functional lighting.
Brand chip:
San'an, Cree: These two companies are leading companies in the domestic LED industry, ensuring the high quality and reliability of 5050RGB lamp beads.
Waterproof performance:
Waterproof: Suitable for outdoor environment.
Non-waterproof: Suitable for indoor environment.
Appearance design:
Low cup/high cup: Suitable for thin and thick strips respectively.
Black/white: Provides more choices based on the background color.
3. Product Applications
5050RGB lamp beads are suitable for a variety of occasions due to their colorful changes:
Indoor lighting: Used for decorative lighting to create an atmosphere, such as living room, bedroom, dining room, etc.
Outdoor lighting: Suitable for functional lighting occasions such as street lights and landscape lighting.
Electronic products: Used to make point light sources, pixel screens, etc.
4. Product Selection Guide
When purchasing 5050RGB lamp beads, you should consider the following factors:
Power: Choose the appropriate brightness according to the lighting requirements.
Brand chip: Choose the chip that suits your product.
Waterproof performance: Choose the appropriate type according to the use environment.
Appearance: Choose the shape according to the installation requirements.
5. Frequently Asked Questions
How long is the lifespan of 5050RGB lamp beads?
The lifespan of 5050RGB lamp beads is generally 50000 hours.
What is the color temperature range of 5050RGB lamp beads?
The color temperature range of 5050RGB lamp beads is 2700K-6500K.
What is the brightness of 5050RGB lamp beads?
The brightness of 5050RGB lamp beads is generally 100-150lm/w.
Customer Notice
Professional Internal IC LED Solution
Product Dehumidification
Due to the absorption of moisture by SMD products, water vapor will evaporate and expand during high-temperature welding, which can easily cause the chip and the gold wire connecting the holder to be pulled off. Therefore, customers should use 65-70 degrees to bake for more than 12 hours before use. After opening, the package should be welded in a short time and cannot exceed 24 hours. If it exceeds 24 hours, it needs to be dehumidified again. (Rolled baking: 65-75 degrees/10-15H Loose baking: 130-150 degrees/2-3 hours)
SMT Patch
When customers SMT patch, they should try to choose a suction cup larger than the light-emitting surface of SMD (gel), to prevent the damage to the internal gold wire of the LED caused by improper setting of the suction cup height. The suction cup height during SMT will also affect the quality of the LED, because the suction cup is too deep. Pressing the LED gel will cause the internal gold wire to deform or break, causing the fire bead to not light up or flicker, and quality problems. Selecting a suitable suction cup is the key to providing product process quality.
Hand soldering
It is recommended to use a constant temperature soldering iron and select a solder wire <0.5mm. The temperature should be controlled within 300 degrees. The welding time of a single LED should not exceed 3 seconds. During welding, the gel is in a high-temperature state. Do not press the surface of the gel, do not apply pressure to the LED pins, let the solder wire melt naturally and combine with the pins. Be careful not to use hard objects and objects with sharp edges to scrape, wipe, or press the surface of the gel, which can easily cause the internal gold wire to deform. Cause dead lights (batch production cannot be hand-soldered, because the quality of hand-soldered is not stable)
Reflow welding
During batch production, SMT patch production is required. It is recommended to use solder paste with a melting point below 220 degrees. It is best to use a reflow solder with eight temperature zones. The high temperature should not exceed 240 degrees and the peak time should be less than 10S. The reflow solder should be completed once. The LED cannot be reflow soldered more than twice. Multiple reflow soldering is destructive to the product. The LED should not be repaired after reflow soldering. When repair is inevitable, it must be operated by a heating plate or a skilled welder, but it must be confirmed in advance whether this method will or will not damage the LED itself.
Anti-static measures
During use, the machines that come into contact with the product need to be grounded with wires. The workbench should use a conductive table pad through a resistor to ground. The soldering iron on the workbench must be grounded. The operator must wear an anti-static ring, anti-static clothing, etc., and it is recommended to use a ion generator.
Product inspection
Please check the incoming materials carefully for the products shipped by our company. If there is any problem, please feedback in time. Before mass production, please first trial production in small batches to make sure there is no problem before mass production. The first picking should not exceed 10% of the total batch.
